Hot-dip Galvanizing Process

Hot-dip galvanizing is the process of coating iron and steel with zinc, which alloys with the surface of the base metal when immersing the metal in a bath of molten zinc at a temperature of around 840 °F (449 °C). The process of hot-dip galvanizing line results in a metallurgical bond between zinc and steel with a series of distinct iron-zinc alloys. The resulting coated steel can be used in much the same way as uncoated.

Main Products

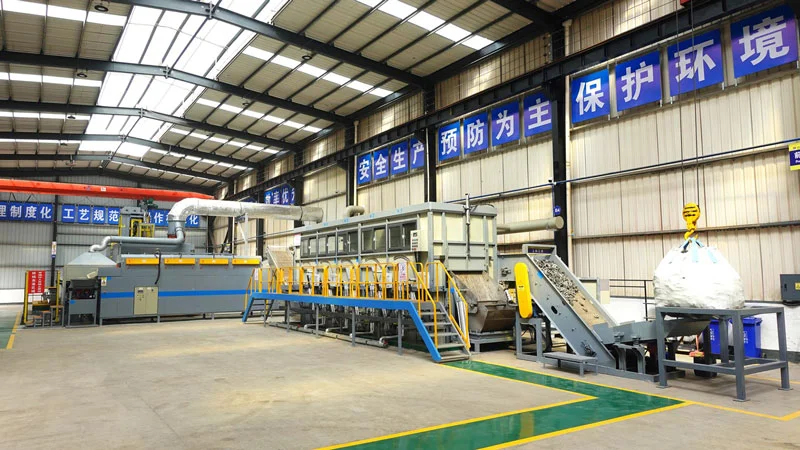

Spin galvanizing line

Spin galvanizing line

Can be used on a wide range of small to medium-sized components including all thread rods, nut blanks, guardrail bolts, anchor bolts, washers, turnbuckles, and wheels.…

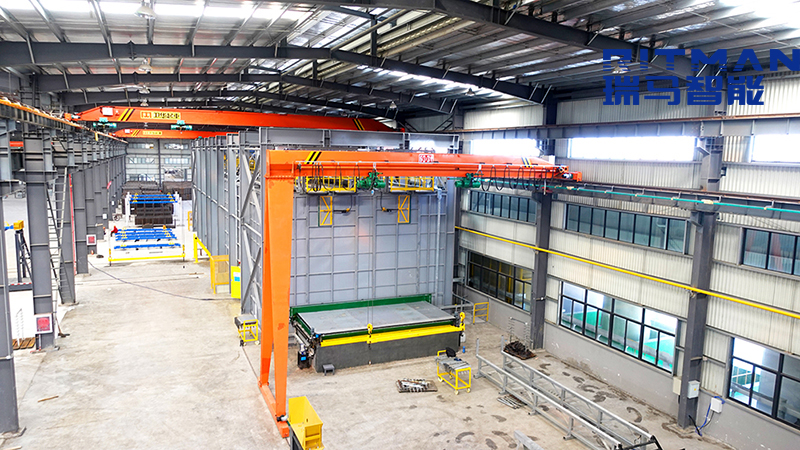

Batch hot dip galvanizing line

Batch hot dip galvanizing line

Can be used for almost all steel parts, including scaffolding, light poles, pipes, monopole towers, angles, structural parts, roof members, highway fences,containers...…

OUR SERVICES

What we do

International Turnkey Projects

Turnkey galvanizing lines shaped to customer's wishes.

  • Product based galvanizing lines
  • Solutions for your need

Surface Treatments

The galvanizing process on the surfaces increases the performance of the raw material.

  • More robust metals
  • Longer-lasting products

Environmental And Recycling Systems

Reduce your costs with eco-friendly projects.

  • Environment-friendly production
  • Reduce costs thanks to recycling

TESTIMONIAL

What our customers say

"After our company purchased the hot-dip galvanizing line, we saw significant results very quickly. Productivity has been greatly improved, and product quality is more consistent than before."

Emilia ClarkeSteel Company

"The use and operation of this equipment is also very convenient and simple, which makes our company's steel production more efficient and competitive."

Micheal SejuroSteel Company

"The hot-dip galvanizing line is used very well, and our company's products are very popular in the market."

Emilia ClarkeSteel Company

"Hot-dip galvanizing line is very important in our company's production, it is able to provide us with high-quality, high-quality steel products."

Micheal SejuroSteel Company

Why we’re different

Xuzhou RITMAN Equipment Co., Ltd. is a metal machine manufacturer and manufactures machines to make the best of galvanizing.

Get a quote

The Steps Of The Hot-dip Galvanizing Process

First the steel is immersed in an acid degreasing bath or caustic solution to remove organic contaminants such as dirt, oil, and grease from the surface of the steel. After degreasing the steel is rinsed with water.

1. Oil Removal

Next the steel is pickled in a dilute solution of either hydrochloric or sulfuric acid.

2. Surface Cleaning With Acid Treatment (pickling)

For a good reaction with zinc the metal must be dry.

3. Rinsing

A flux, often zinc ammonium chloride is applied to the steel to inhibit oxidation of the cleaned surface upon exposure to air. The flux is allowed to dry on the steel and aids in the process of the liquid zinc wetting and adhering to the steel.

4. Flux

For a good reaction with Zinc the metal must be dry.

5. Drying

Hot-Dip Galvanization is a type of galvanization. It is the process of coating iron and steel with zinc, which alloys with the surface of the base metal when immersing the metal in a bath of molten zinc at a temperature of around 449 °C.

6. Hot-dip Galvanizing

Galvanized products are cooled in air or by immersing into a water bath.

7. Cooling

It is about the formation of a protective surface on the zinc to improve corrosion protection.

8. Passivation

After the galvanizing process of the materials, the burrs and deposits formed on the surface are cleaned and packed according to their sizes.

9. Leveling

Download center

Hot-dip Galvanizing Line Brochure

Brochures and further information about our processing lines, products, equipment and lifetime services for our hot-dip galvanizing lines
